Purchasing our Range of Medieval Gabion fencing kit has the following items included in the fence
kit in the RAL 7016 Anthracite Colour, other colours available upon request.

(Click on product code to enlarge)

• 1 x Steel Post (Pre-Drilled/Threaded)
  MESP12X6X24AN
• 2 x Large Side Wire Mesh Panels
  MEBM18X185AN
• 1 X Small Top Wire Mesh Panel
  MESM17X015AN
• 12 Claw Clip/Cap Head Bolt/Washer
  MECSNX12
• 16 x Long C Hook
  MELCH120AN
• 12 x Small C Hook
  MESCC25AN

All the above items are the individual items that make up a “Medieval Fencing Kit” Once you have ordered the desired quantity of Medieval Gabion Kits you will need to purchase a “Medieval Kit End Post” to complete your Fencing Project. See Below

Medieval Kit End Post (To be purchase separately Included in the Medieval Fence Kit)

• 1 x Steel Post (Pre-Drilled/Threaded)
  MESP12X6X24AN
• 12 Claw Clip/Cap Head Bolt/Washer
  MECSNX12
• Have a question ?
  please email us at info@ecompositeproducts.co.uk

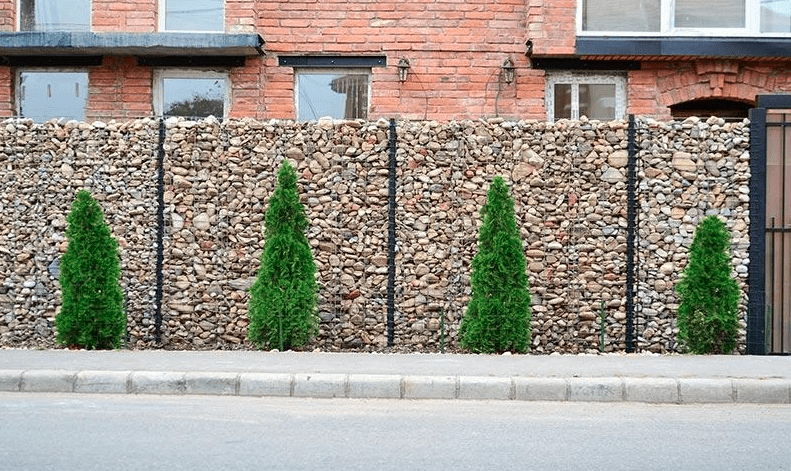

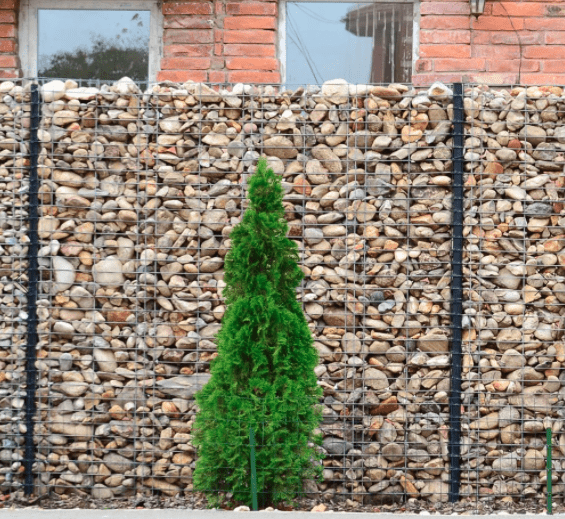

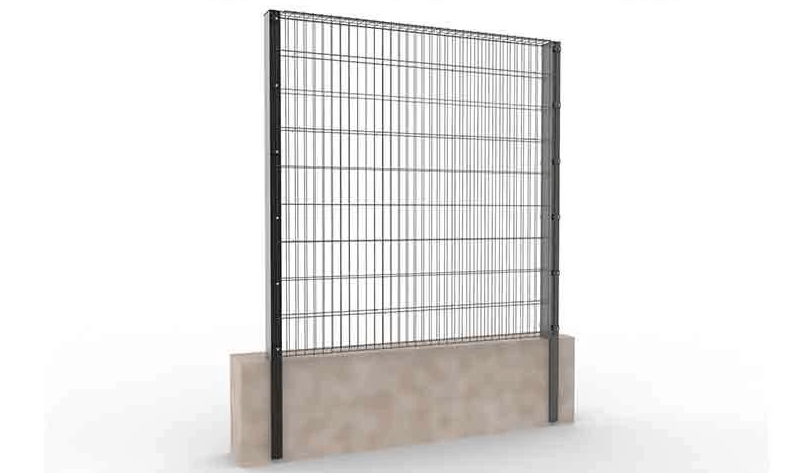

Fully assembled Gabion fencing height 1850mm to the top of the mesh panels and posts 1800mm Wide post centre to post centre.

(Click on product code to enlarge)

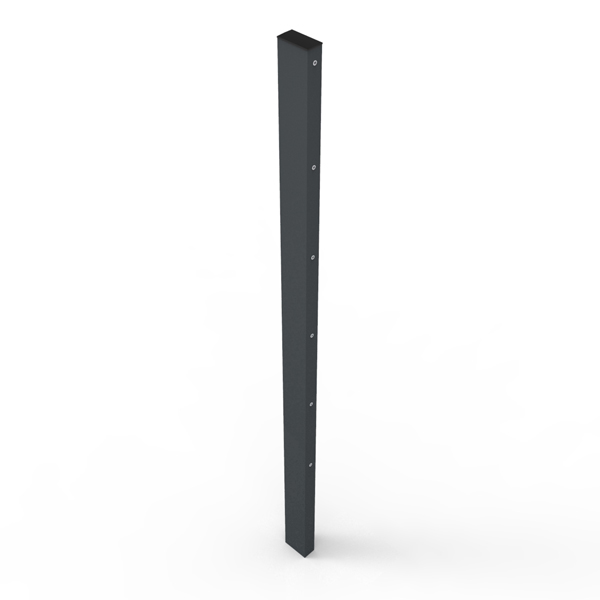

• Mild Steel Galvanised/Powder coated post
  MESP12X6X24AN
• 120mm D x 60mm W x 2400mm L x 2.0mm (thickness)
• Hot dip galvanised. 55 µm(390g/m 2)
• Anthracite RAL 7016 Powder Coating 60 and 80 microns (~2-3 mils).

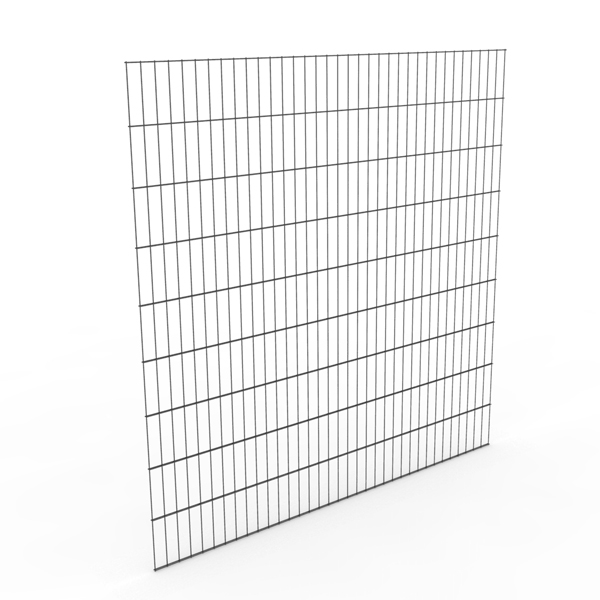

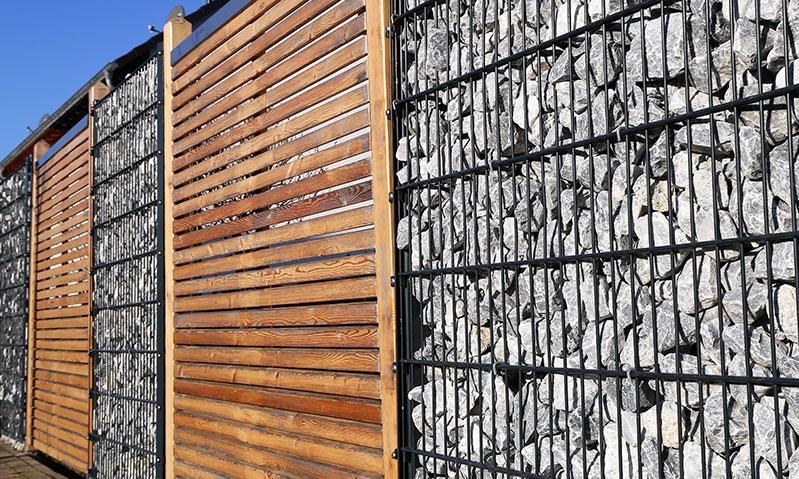

• Mild Steel double horizontal Wire Mesh side panel
  MEBM18X185AN
• 1850mm H x 1800 W x 4/4/4 (thickness) mesh hole 50mm x 200mm
• Hot dip galvanised 55 µm(390g/m 2 )
• Anthracite RAL 7016 Powder Coating 60 and 80 microns (~2-3 mils).

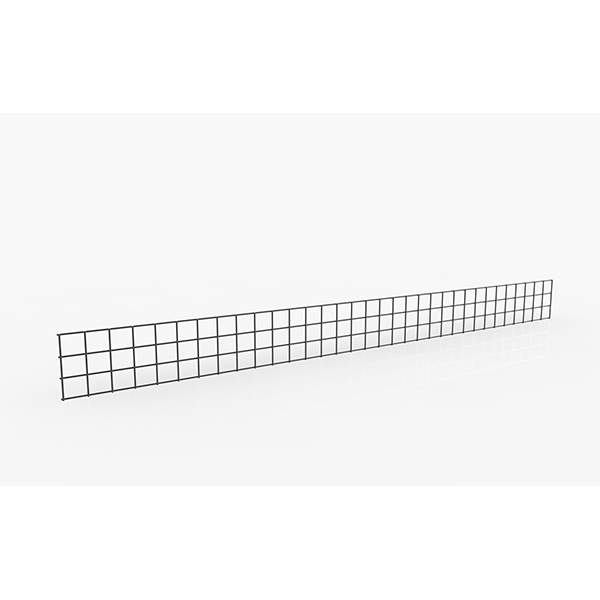

• Mild Steel Single Horizontal Wire Mesh top panel
  MESM17X015AN
• 1680mm W x 130mm D x 4/4 (thickness) mesh hole 50mm x 120mm
• Hot dip galvanised. 55 µm(390g/m 2)
• Anthracite RAL 7016 Powder Coating 60 and 80 microns (~2-3 mils).
• Long C Hooks
  MELCH120AN
• 130mm L x 2.5mm (thickness)
• Hot dip galvanised. 55 µm(390g/m 2)

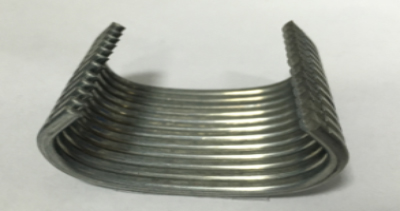

• Short C Hook
  MESCC25AN
• 25mm dia x 2.5mm (thickness)
• Hot dip galvanised. 55 µm(390g/m 2)

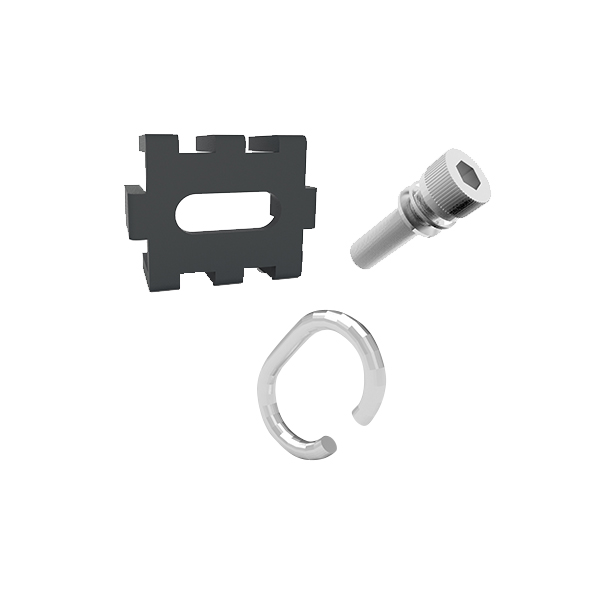

• Claw Clamp / Screw / washer
  MECSNX12

• 40mm W x 50mm H x 10mm D
• Stainless Steel 316 grade Cap Head M8 Bolt x 50mm long
• Stainless Steel 316 grade 20mm Dia x 11mm hole x 1mm thick
